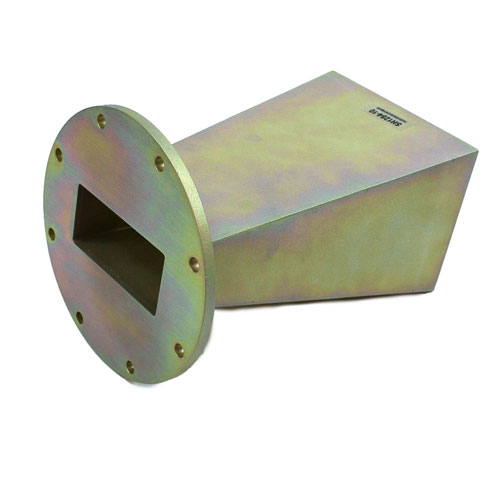

WR-284 Standard Waveguide Horn With UG-584/U Round Cover Flange and 10 dB Nominal Gain Operating From 2.6 GHz to 3.95 GHz Frequency Range

SKU: SH1284-10
DISCONTINUED PRODUCT
Replaced By: FM9863B-10-U
Product Documents
Key Specifications
Key Specifications.
Waveguide SizeWR-284
Frequency, Min2.6 GHz
Frequency, Max3.95 GHz
Beam Width V54.1
Beam Width H50.8
Description

WR-284 Standard Waveguide Horn With UG-584/U Round Cover Flange and 10 dB Nominal Gain Operating From 2.6 GHz to 3.95 GHz Frequency Range

Waveguide horn with coaxial adapter transition (can also called a waveguide horn antenna) SH1284-10 from Fairview Microwave is just one part in a large selection of our waveguide components. Our waveguide horn antenna with coax adapter transition is manufactured with a WR-284 waveguide size. Fairview WR-284 waveguide horn antenna is constructed with a UG-584/U connector and built to precise RF / microwave / millimeter wave waveguide antenna design specifications.

WR-284 waveguide antenna with UG-584/U adapter transition from Fairview Microwave is a 10 dB gain and in-stock now. Our UG-584/U WR-284 10 dB gain horn waveguide antenna has a minimum frequency of 2.6 GHz and a maximum frequency of 3.95 GHz. This waveguide WR-284 horn antenna with UG-584/U transition has a vertical beam width of 54.1 and horizontal of 50.8 degrees at 3 dB.

Additional specs of this 10 dB gain Waveguide horn with UG-584/U input can be found on the WR-284 waveguide antenna datasheet specifications above. This Wave guide horn antenna is part of over one million RF, microwave and millimeter wave components in-stock. Our part number SH1284-10 Waveguide antenna horn with UG-584/U coaxial adapter is ready for same day purchase and shipping worldwide. Fairview also stocks a wide array of other waveguide antenna products that ship same-day from our warehouse for all your RF/microwave and millimeter wave WR-284 waveguide component needs.
