Vertical Launch PCB Connectors

Vertical Launch PCB Connectors
  • Operating Frequencies up to 50 GHz
  • Low VSWR of 1.3:1
  • Reusable Clamp Attachment
  • Solderless Installation
  • Stripline and Microstrip Versions

Click on a product below for more details.

2.92mm Vertical Launch PCB Connectors

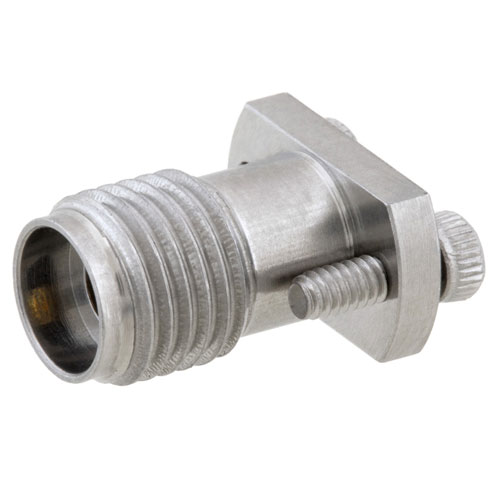

2.92mm Female PCB Connector Vertical Launch Clamp Attachment Removable Stripline Launch

Click to open:
FMCN1475

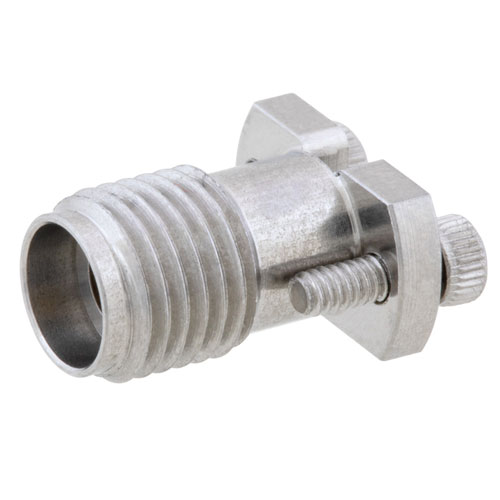

2.92mm Female PCB Connector Vertical Launch Clamp Attachment Removable Microstrip Launch

Click to open:
FMCN1476

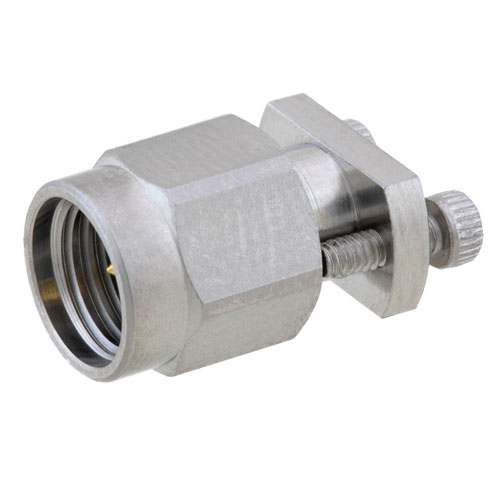

2.92mm Male PCB Connector Vertical Launch Clamp Attachment Removable Stripline Launch

Click to open:
FMCN1477



2.92mm Male PCB Connector Vertical Launch Clamp Attachment Removable Microstrip Launch

Click to open:
FMCN1478



2.4mm Vertical Launch PCB Connectors

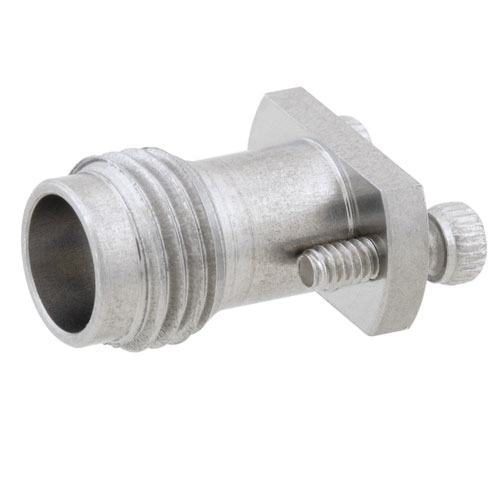

2.4mm Female PCB Connector Vertical Launch Clamp Attachment Removable Stripline Launch

Click to open:
FMCN1479

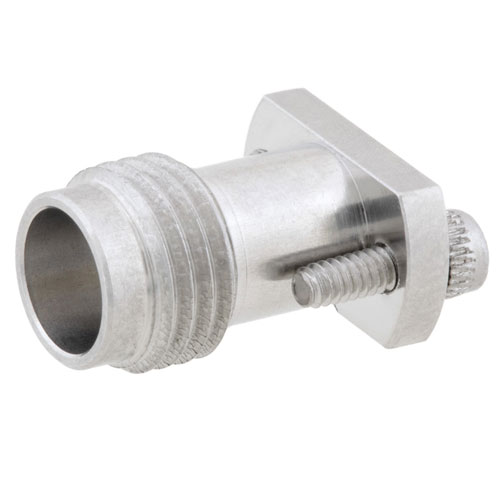

2.4mm Female PCB Connector Vertical Launch Clamp Attachment Removable Microstrip Launch

Click to open:
FMCN1480

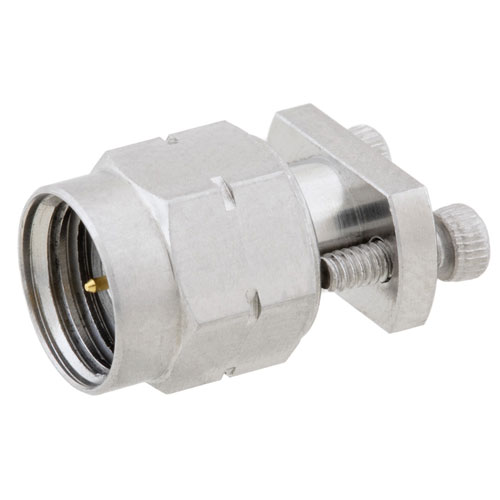

2.4mm Male PCB Connector Vertical Launch Clamp Attachment Removable Stripline Launch

Click to open:
FMCN1481

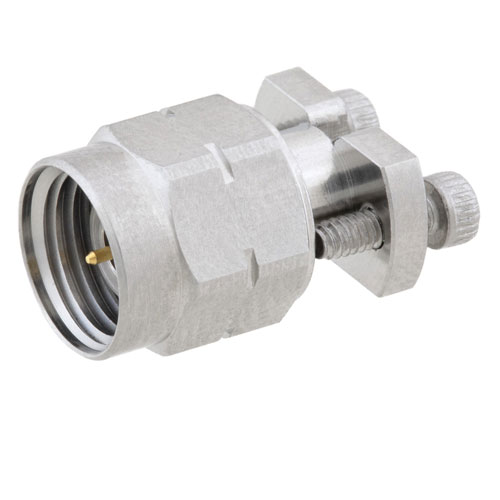

2.4mm Male PCB Connector Vertical Launch Clamp Attachment Removable Microstrip Launch

Click to open:
FMCN1482



SMA Vertical Launch PCB Connectors

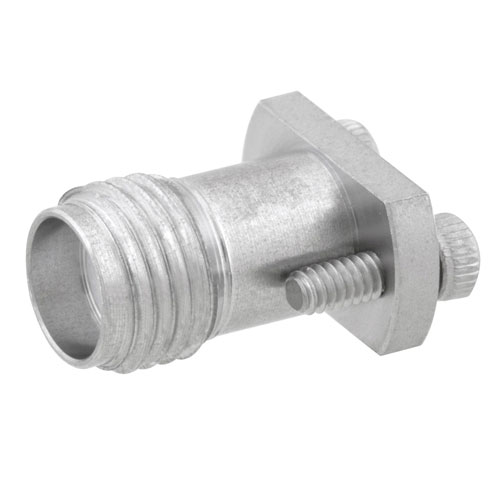

SMA Female PCB Connector Vertical Launch Clamp Attachment Removable Stripline Launch

Click to open:
FMCN1483

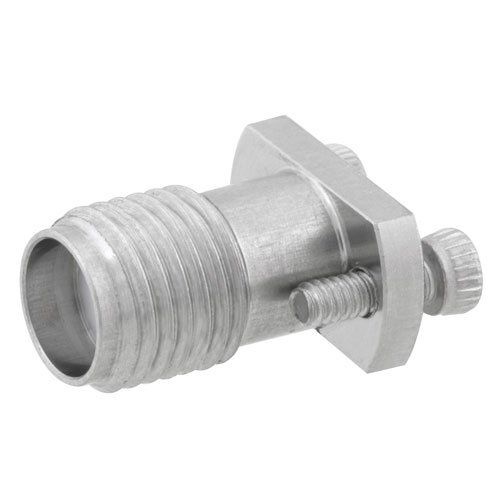

SMA Female PCB Connector Vertical Launch Clamp Attachment Removable Microstrip Launch

Click to open:
FMCN1484

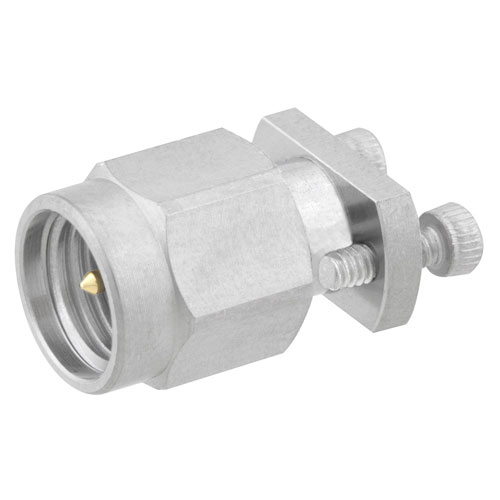

SMA Male PCB Connector Vertical Launch Clamp Attachment Removable Stripline Launch

Click to open:
FMCN1485

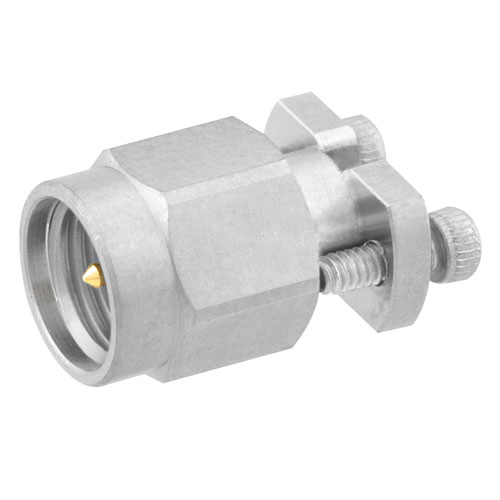

SMA Male PCB Connector Vertical Launch Clamp Attachment Removable Microstrip Launch

Click to open:
FMCN1486



Vertical Launch PCB Connectors from Fairview Microwave

Fairview Microwave’s line of vertical launch connectors is made-up of 12 models that deliver maximum operating frequency of up to 50 GHz and VSWR as low as 1.3:1, depending on the model. They are offered in male and female versions, covering 2.4mm, 2.92mm and SMA interfaces.

These removable vertical launch connectors feature a reusable clamp attachment and can be used for microstrip or stripline, and all models provide solderless installation. They also feature a gold-plated beryllium copper center contact, a stainless steel outer conductor and Polyetherimide (PEI) insulators.

These vertical launch connectors are ideal for a variety of uses that include signal integrity measurements, multi-channel tests, semiconductor verification boards, high-speed backplanes and SERDES applications.

Fairview Microwave’s vertical launch connectors are in stock and available for immediate shipment.



Click here to view our entire line of RF products.
