Uses for Coaxial Directional Couplers
Key Takeaways
- Coaxial directional couplers enable non-intrusive RF signal monitoring.
- They are essential for measuring forward and reflected power.
- Widely used in test labs, telecom infrastructure, and wireless systems.
- High directivity and low insertion loss ensure measurement accuracy.
- Available with multiple coupling values, connector types, and power ratings.
What Is a Coaxial Directional Coupler?

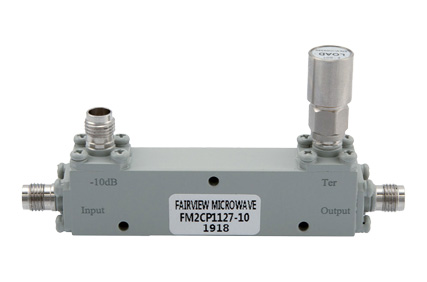

A coaxial directional coupler is a four-port RF device designed to couple a specific, predetermined portion of power from a transmission line while allowing the majority of the signal to pass through uninterrupted. The four ports typically include an input port, an output (through) port, a coupled port, and an isolated port. The coupled port extracts a fraction of the forward-traveling signal, while the isolated port rejects signals traveling in the opposite direction. This directional behavior allows precise measurement of forward or reflected power, making directional couplers fundamental tools in RF signal monitoring and diagnostics.
How Coaxial Directional Couplers Work
Coaxial directional couplers operate using electromagnetic field coupling between transmission lines within the device. As RF energy travels through the main coaxial line, a controlled portion of that energy is coupled to a secondary line based on the coupler’s design and coupling value. The internal geometry ensures that energy is sampled in only one direction, providing high directivity and minimizing interference from reflected signals. This design allows accurate signal sampling with low insertion loss, preserving signal integrity while enabling measurement and control functions across microwave and millimeter-wave frequencies.
Typical Coaxial Directional Coupler Products
Manufacturers such as Fairview Microwave offer a range of coaxial directional couplers tailored for various applications:
- Broadband SMA Couplers: Designed for VHF/UHF and lower microwave bands with widespread compatibility.
- High-Power N-Type Couplers: Suitable for telecommunications, broadcast, and base station monitoring with robust power handling.
- Precision 2.92 mm Couplers: Support microwave frequencies up to ~26.5 GHz with low insertion loss and high directivity.
- Specialized Couplers: With specific coupling values optimized for test fixtures or network analyzer applications.
Key Uses of Coaxial Directional Couplers
Coaxial directional couplers are widely used for signal monitoring, power measurement, and system protection in RF and microwave applications. In test and measurement environments, they enable real-time monitoring of signal levels without interrupting the signal path. In communication systems, directional couplers help measure return loss and VSWR, ensuring proper impedance matching between transmitters and antennas. They are also used in reflectometry for fault detection, transmitter power monitoring, and isolating signals during two-tone or intermodulation testing. These versatile applications make directional couplers indispensable components in modern RF system design and maintenance.
There are a few different types of directional couplers that are commonly available. The most common type most engineers will encounter is a RF Coaxial Directional Couplers, but there are also waveguide, surface mount, on-chip, and planar transmission line/waveguide types. There are a few different methods of constructing a coaxial directional coupler that makes use of the coaxial transmission line, but some coaxial directional couplers may also be other types of directional couplers in a coaxial connectorized package. Also, it is not uncommon for the coupled ports of a waveguide directional coupler to have coaxial ports.
Coaxial directional couplers, like other directional couplers, have a limited operating frequency that is less than that of the coaxial connector types and transmission line that make up the coupler. This is because the design of the coupled elements doesn’t perfectly match the transmission line across the entire frequency range and these non-idealities result in a limited operating frequency. However, this mismatch can typically be configured so that the directional coupler operates over a very wide frequency, with only limiting the lowest frequency range and matching the highest frequency range to the limitations of the coaxial connector type. This can be somewhat confusing for SMA Directional Couplers, as there are several grades of SMA connector types which have a maximum cut-off frequency of ~ 12 GHz, 18 GHz, 26.5 GHz, or even 30 GHz.
Coaxial directional couplers can essentially be used in any application requiring directional couplers that has access to coaxial ports or adapters to coaxial ports. Test and measurement and RF sensing applications are some of the most common applications where couplers are used. However, directional couplers are also used in telecommunications to monitor transmitter output characteristics. In test and measurement, coaxial directional couplers can be used to make a custom network analyzer setup, or to calibrate a signal generator (calibrated/leveled output) for receiver testing, for example. In some cases, it is best to have the directional coupler as close to the signal extraction point as possible, especially in millimeter-wave applications where the losses from interconnect can significantly impact the dynamic range of the signal chain. Other use cases include providing isolation between signal sources in a 2-tone receiver intermodulation testing setup, and as a key element in a reflectometer. A reflectometer uses the time difference between the transmitted signal and the return reflections to provide an impedance mapping of a transmission line. Reflectometry systems are used as test and measurement features or even key functions of certain RF systems, such as MRI, RF heating, and other applications.
FAQs (Frequently Asked Questions)
1. What is the primary purpose of a coaxial directional coupler?
A: A coaxial directional coupler samples a defined portion of RF power from a transmission line while allowing the main signal to pass with minimal loss.
2. Where are coaxial directional couplers commonly used?
A: They are used in RF testing, wireless base stations, satellite systems, VSWR monitoring, and power measurement applications.
3. What is the coupling value in a directional coupler?
A: Coupling value (e.g., 10 dB, 20 dB) indicates how much signal power is extracted relative to the main line.
4. Can directional couplers measure reflected power?
A: Yes, directional couplers can separately measure forward and reflected power to determine return loss and VSWR.
5. What connector types are used in coaxial directional couplers?
A: Common connectors include SMA, N-Type, TNC, 2.92 mm, and 3.5 mm, depending on frequency and power requirements.
